SCM Minimax ME 28T Edgebander with Pre-Milling

Machines › Edgebanders › SCM Minimax ME 28T Edgebander with Pre-Milling

SCM Minimax

Edgebanders

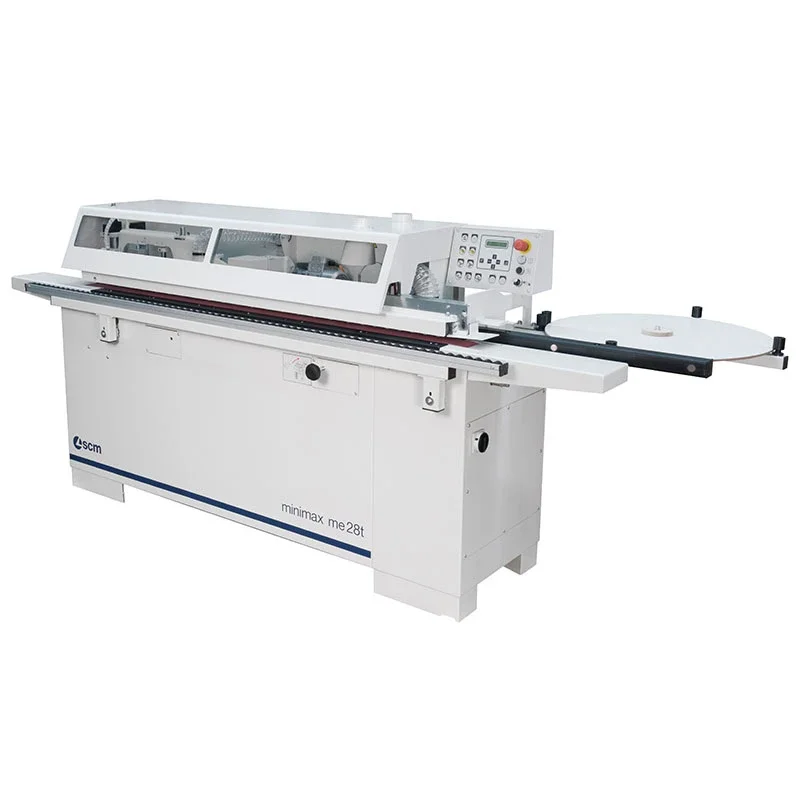

Automatic edgebander with glue pot and pre-milling unit

The SCM ME 28T is an automatic edgebander with a glue pot and a pre-milling unit — the feature that sets it apart at this size. Two diamond pre-milling heads correct any edge imperfection from sawing or panel storage before gluing, so the bond is clean and the finish is right the first time. It handles melamine, PVC and ABS up to 3mm and wooden strips up to 5mm, with end trimming, top and bottom trimming, scraping and buffing all on board.

Enquire about this machine

KEY SPECIFICATIONS

Worktable

2800 × 570 mm

Worktable height

904 mm

Panel thickness (min/max)

12–50 mm

Edge — coil

0.4–3 mm

Edge — strip

Up to 5 mm

Min panel length / width

190 / 110 mm

Feed speed

7 m/min

Feed motor

0.55 kW (S1)

Glue temperature

20–190 °C

Pre-milling removal steps

0.5 / 1 / 1.5 / 2 mm

Air pressure required

6.5 bar

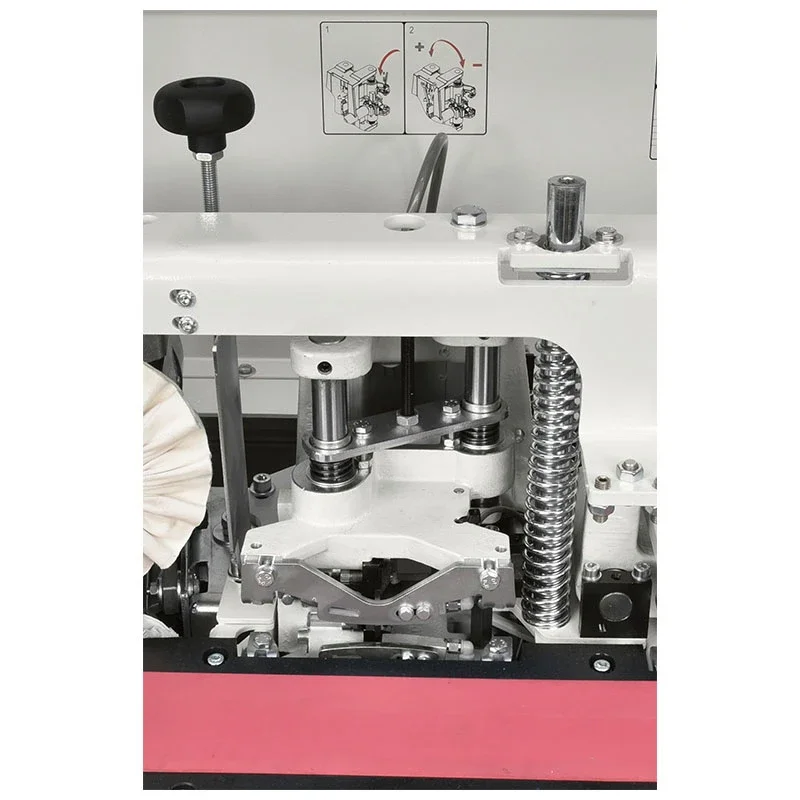

Scraping unit

3 mm cutter radius

Buffing

Two independent motors, 3000 rpm

Phase

Single-phase or 3-phase

FEATURES

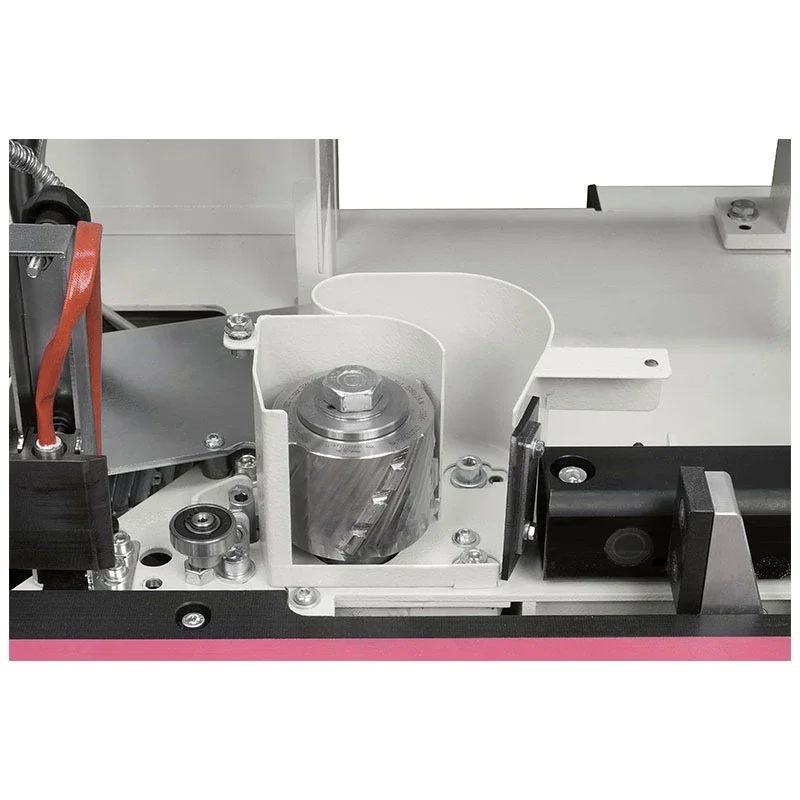

● Pre-milling unit — diamond heads clean up the edge before gluing for a flawless bond, right

the first time

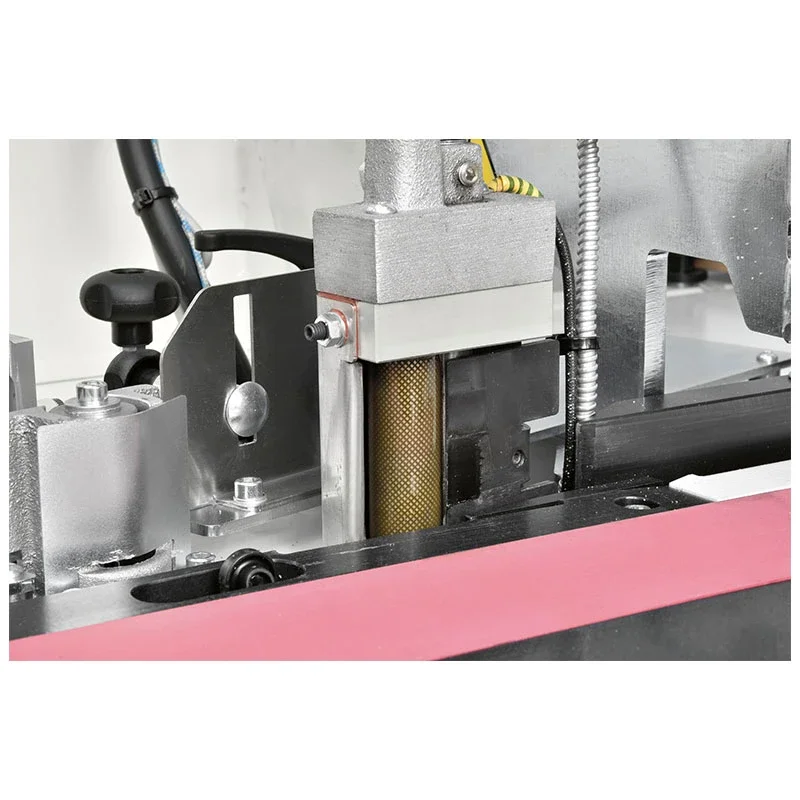

● Glue pot with heated fence — reliable gluing on melamine, PVC and ABS

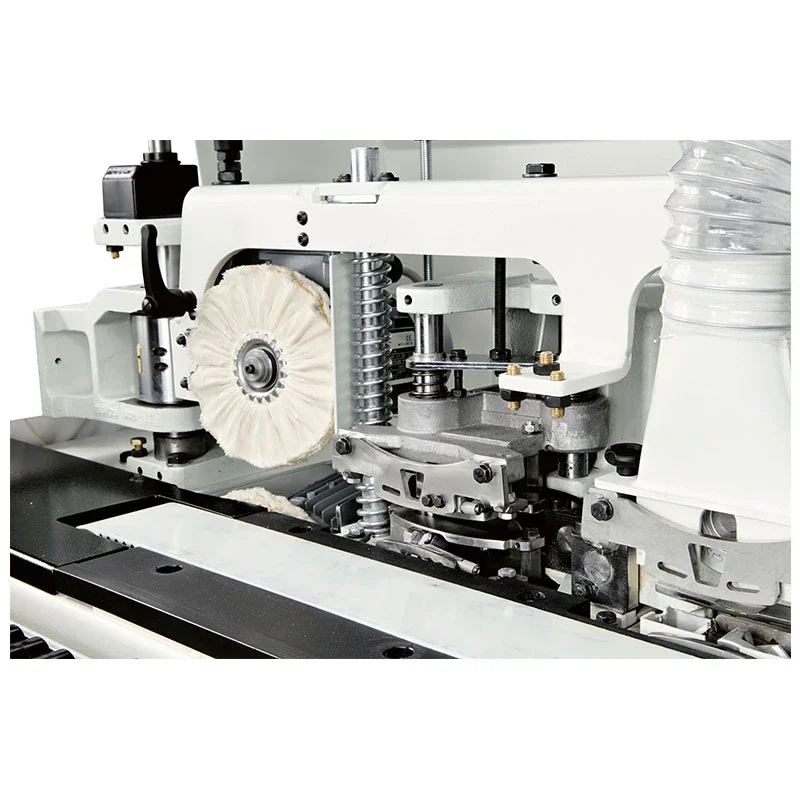

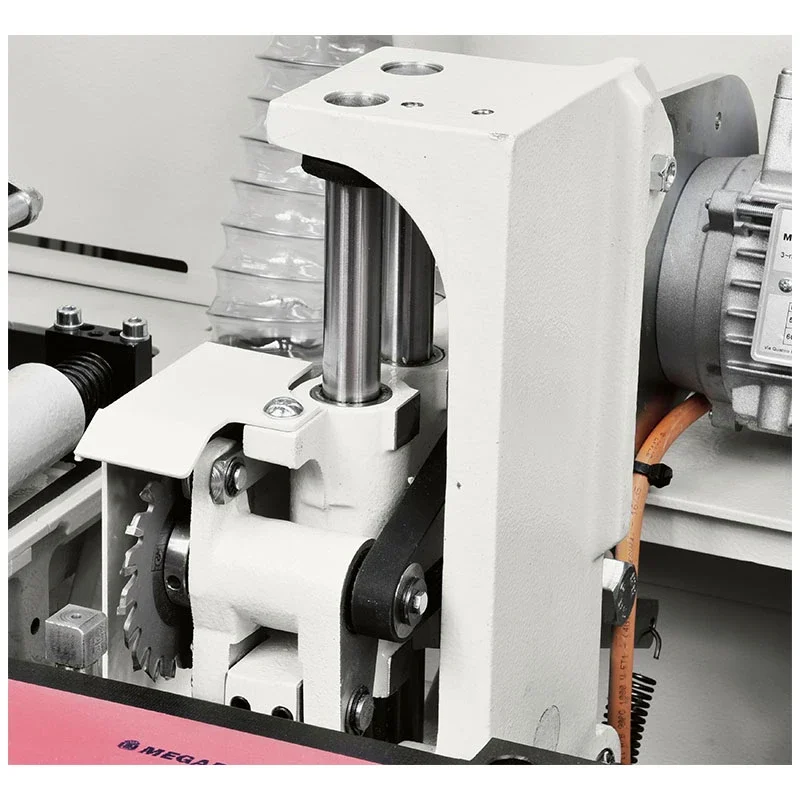

● Full finishing line — end trim, top/bottom trim, scrape and buff in one pass

● Independent exhaust — hood and air blower keep panel and machine clean

● Compact with single-phase option — big-machine capability in a smaller shop

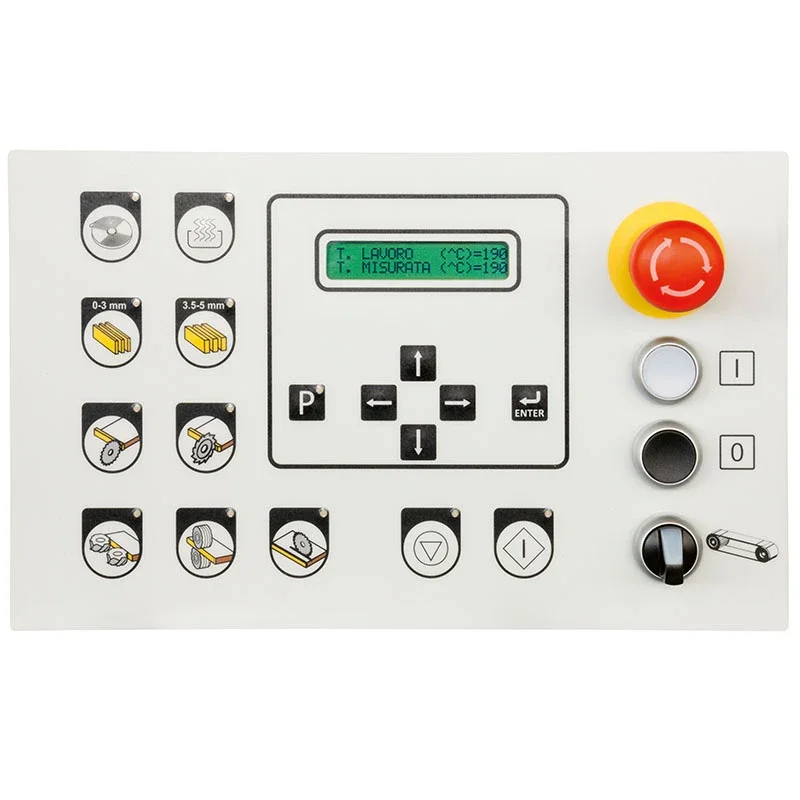

● PLC control — padlockable main switch, overload protection, emergency stops
