Machines › Kitchen & window lines › Vertongen PenPro Compact Kitchen Door Line
Kitchen door lineVertongenVertongen PenPro Compact Kitchen Door Line
CNC kitchen cabinet door line — one operator, complete frames

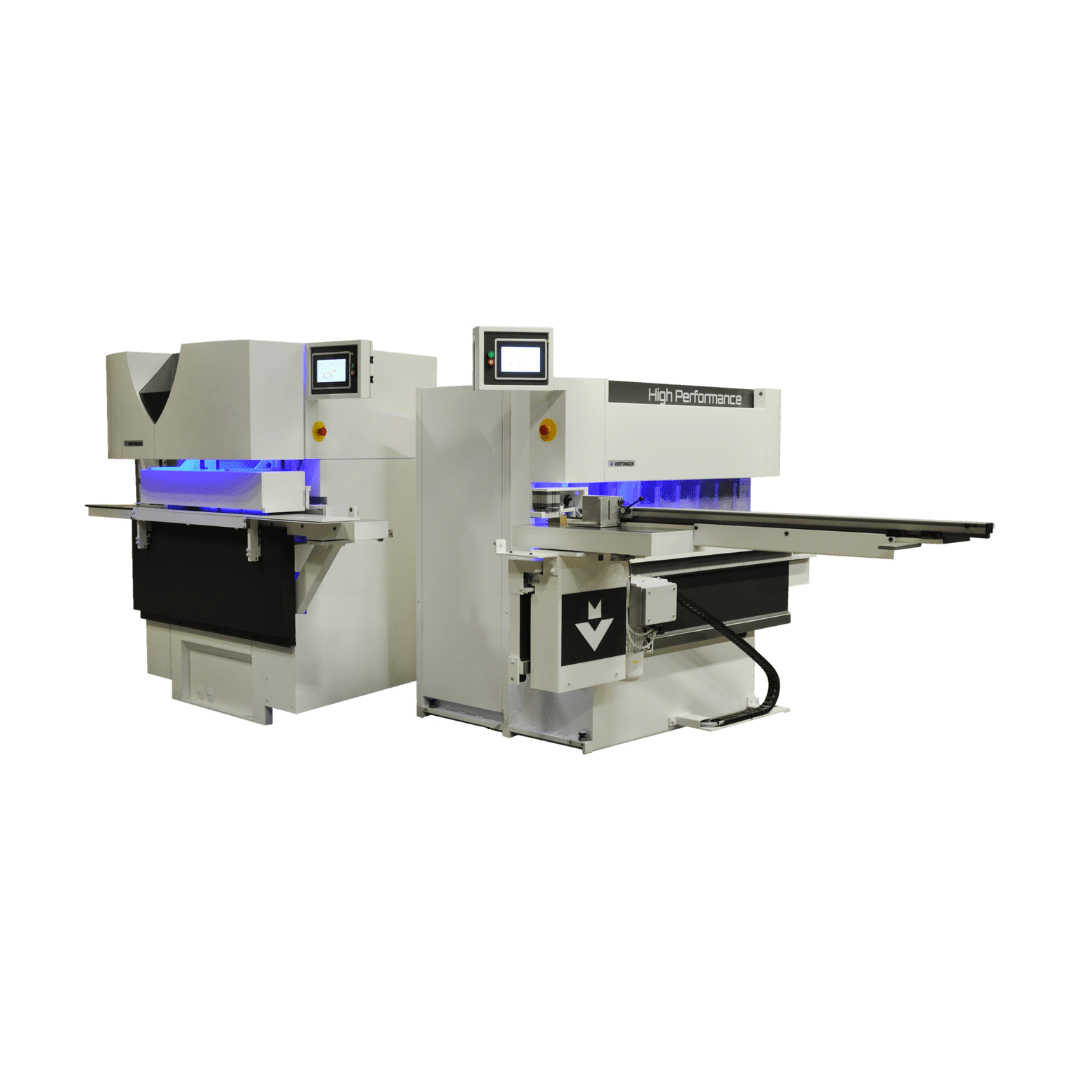

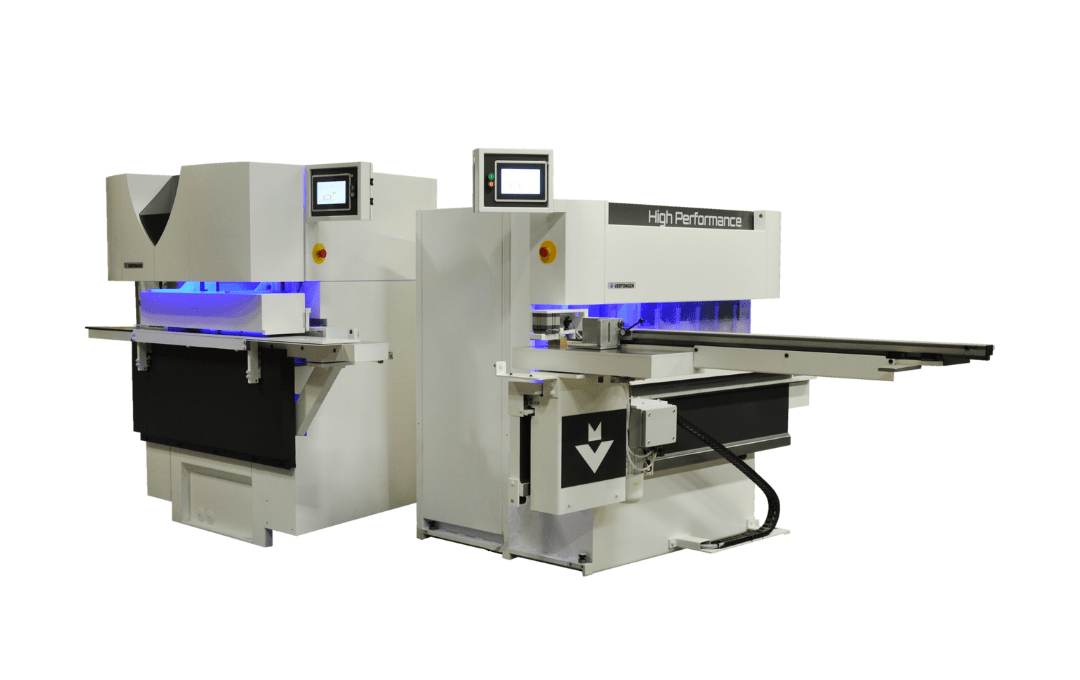

The Vertongen PenPro Compact Kitchen replaces a floor full of separate machines with one integrated, CNC-controlled solution. It combines the Pentho Compact Kitchen tenoner and the Profil Compact Kitchen profiler, so a single operator can produce complete kitchen cabinet door frames — rails and stiles, sized and coped — with millimetre precision. No hand setups between profiles, no accumulated error, no rework.
As a kitchen door manufacturer, your floor is filled with separate machines — each covering one step, each run by a different person. However skilled your team, inaccurate parts are almost inevitable, and every mechanical adjustment costs time and money. The PenPro Compact Kitchen brings the whole process into one CNC-controlled cell that one person can run.
KEY SPECIFICATIONS
Combines

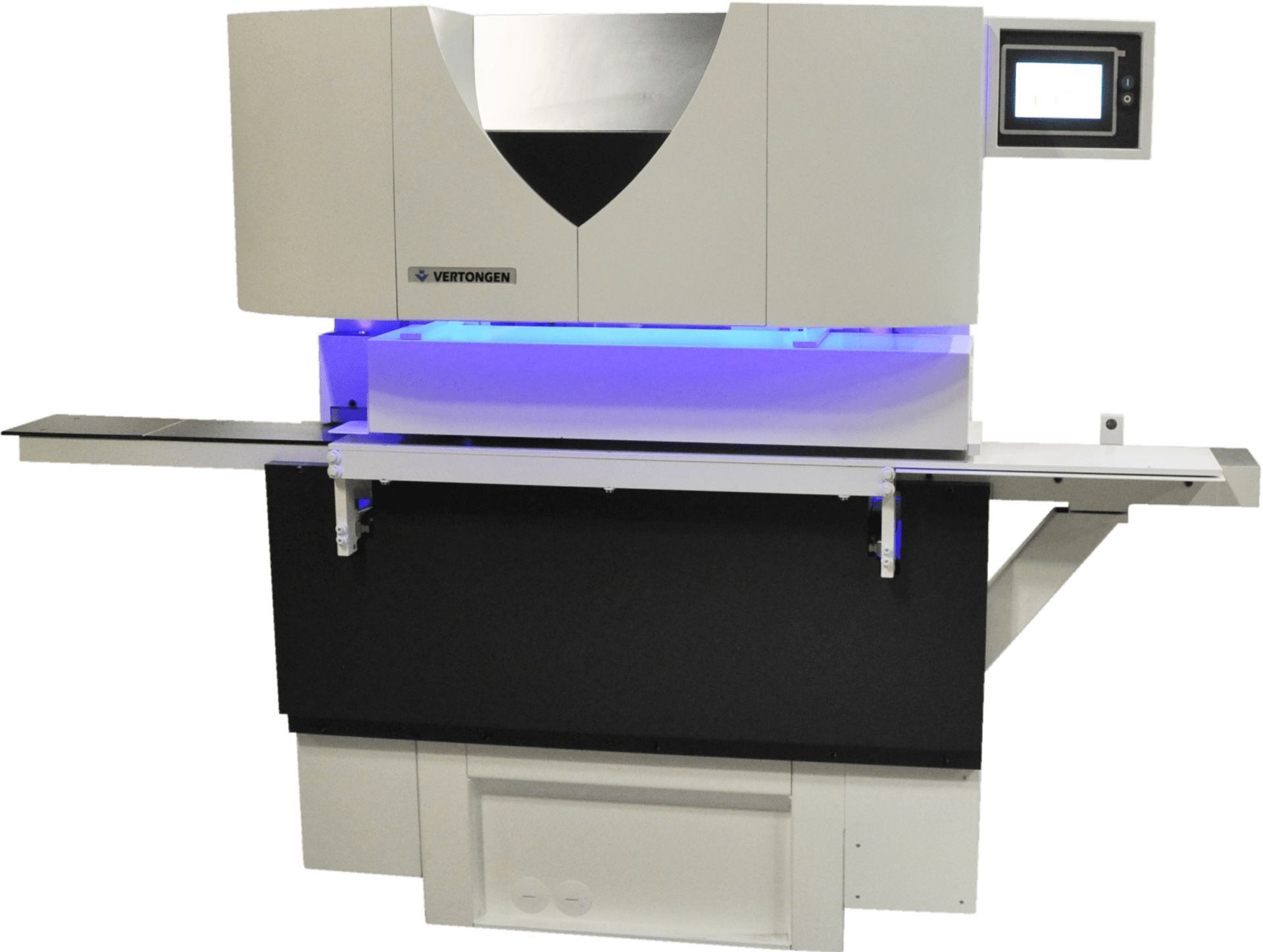

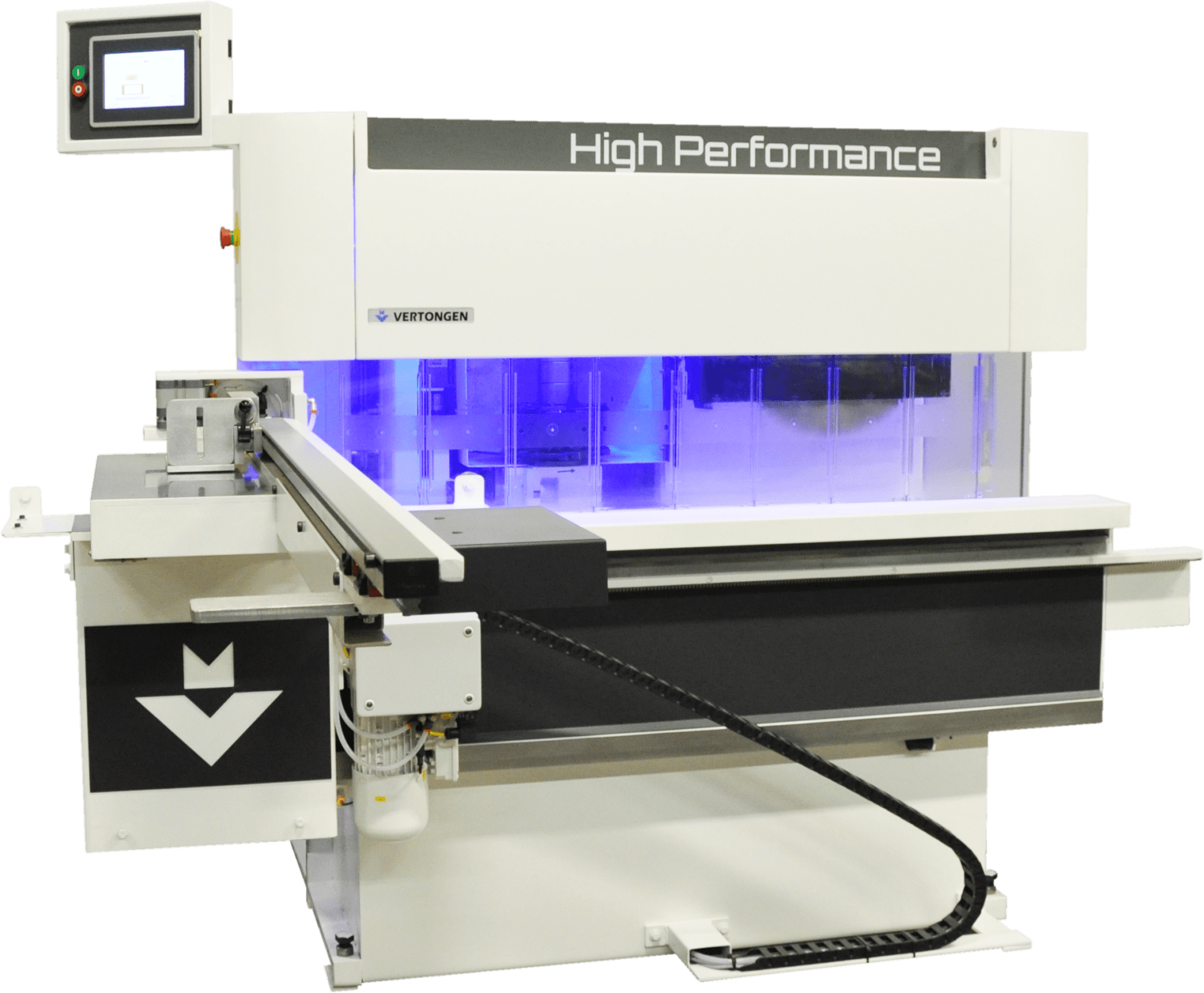

Pentho Compact Kitchen + Profil Compact Kitchen
Vertical spindle
300 mm, with Prolock
Cut-off saw
Noise-reduced
Spindle tooling
Stacked tools — cope & size without manual setup
Production capacity
400–800 doors per 8-hour shift
Profile changeover
Under 20 seconds
Operation
Single operator; two pieces simultaneously
Length fence
Automatic
Safety
Integrated clamp detection + transparent screen
Data
Barcode system with CSV data
Manufacturer
Vertongen (Belgium), 100+ years
FEATURES
● Two machines in one CNC cell — tenoning and profiling combined; one operator, complete
door frames
● 400–800 doors per shift — serious output from a compact footprint
● Profile change in under 20 seconds — stacked tooling and program selection, no manual
setup
● Millimetre precision, no rework — accurate the first time, every time
● Barcode + CSV data — production-ready workflow
● Built-in safety — clamp detection and fully transparent guarding
● Belgian engineering — Vertongen has built window and door machinery for over a century
General Kitchen Door Production
Enquire about the Vertongen PenPro Compact Kitchen
RELATED MACHINES
Vertongen Pentho Compact 4

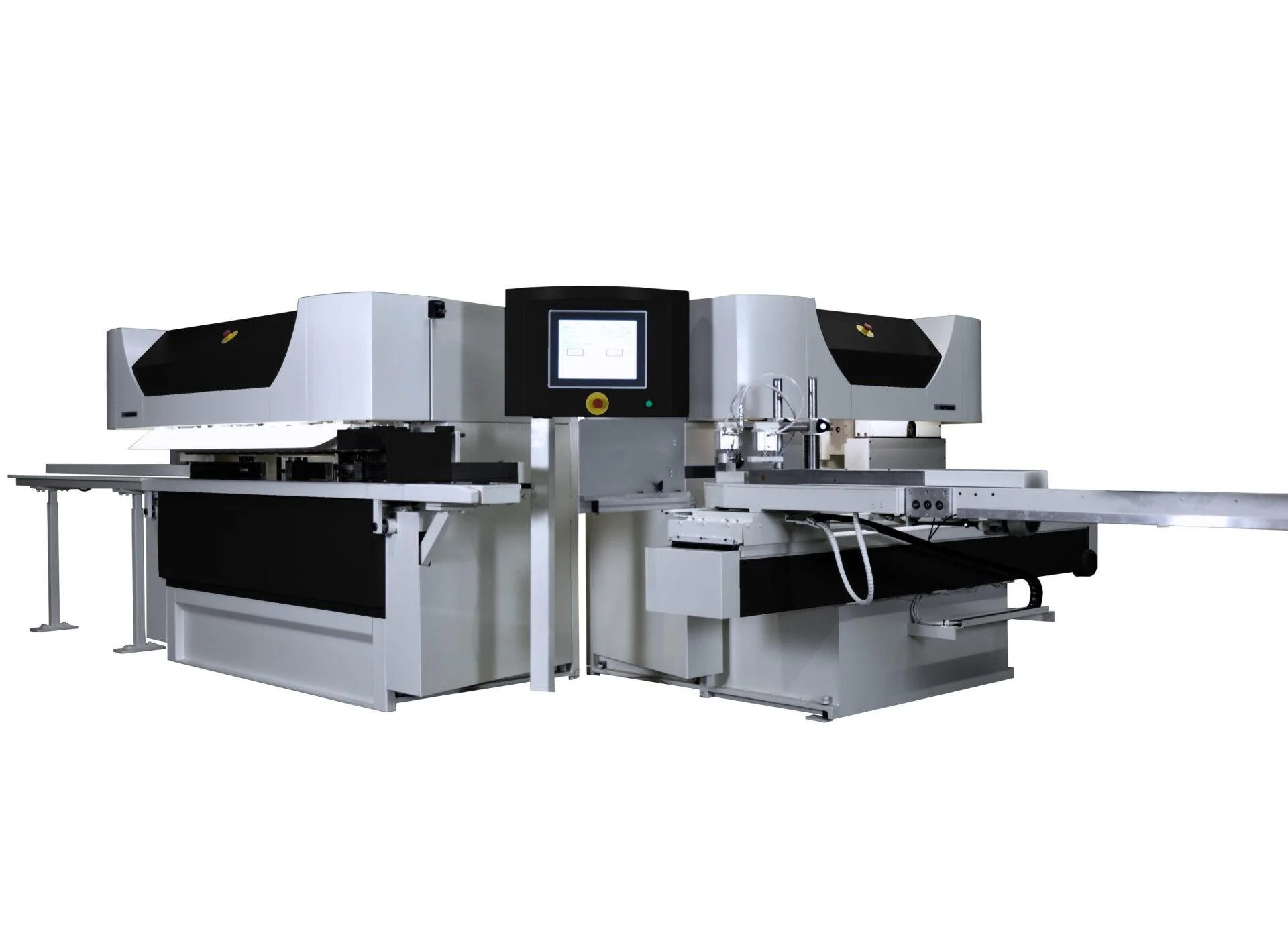

Vertongen PenPro Control Window Line
