Window lineVertongenVertongen PenPro Control Window Line
CNC window & door line — tenoning and profiling combined

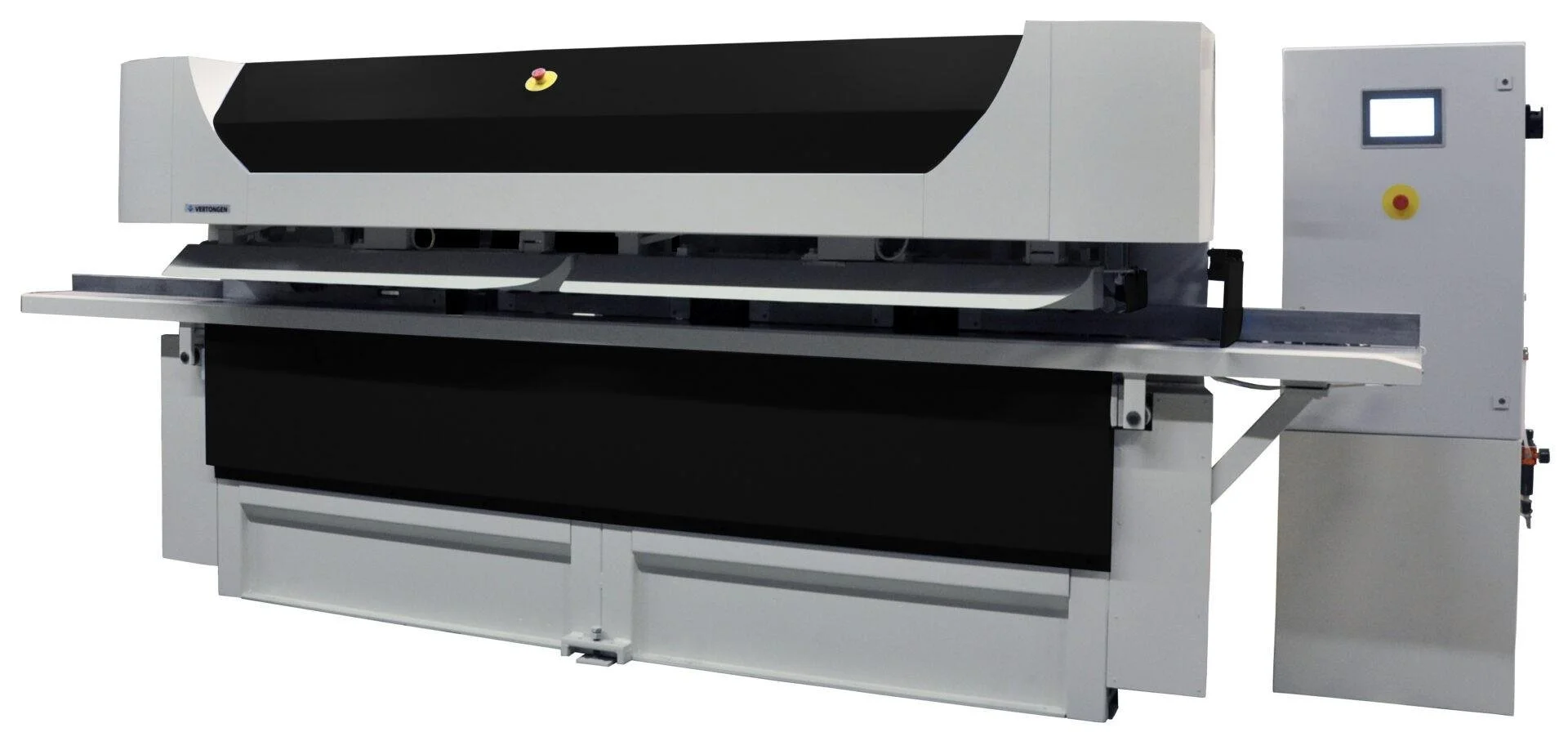

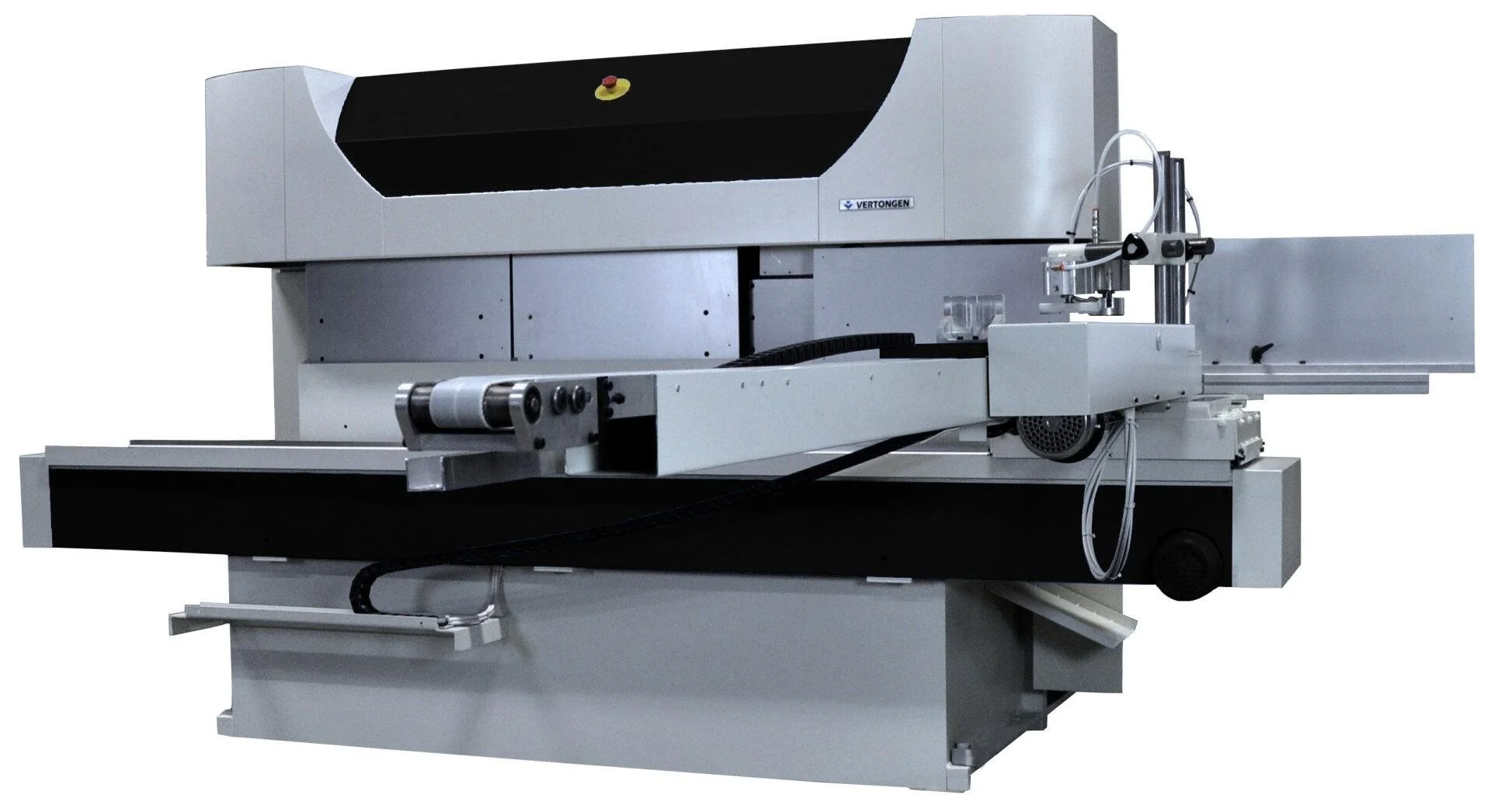

The Vertongen PenPro Control is what you get when you combine Vertongen's best tenoner with its finest profile moulder: one fully CNC-controlled machine that manufactures complete windows and doors to the highest accuracy. It's built for professional craftsmen producing windows and doors on an industrial scale. The Pentho Control tenoner (one or more vertical spindles, noise-reduced cut-off saw) and the Profil Control profiler run in tandem, with tool-splitting technology so tools from all spindles can be combined, and integrated software that handles the demanding component calculations for you.
KEY SPECIFICATIONS
Combines
Pentho Control tenoner + Profil Control profiler
Tenoning unit
One or more vertical spindles + noise-reduced cut-off saw
Profiling unit
One or more spindles, tool-splitting technology
Optional units
Glass bead saw, hardware groove, top/bottom slot cutters
Profile range
Min zero Ø 120 mm; max Ø = zero Ø + 90 mm (max 240 mm)
Profile changeover
Program-driven, no tool changes between jobs
Operation
Integrated — calculates single components
Setup
Tool mounting and pre-setting done by Vertongen
Best for
Industrial-scale window and door production
Manufacturer
Vertongen (Belgium)
FEATURES
● Tenoner + profiler in one CNC line — complete windows and doors from a single machine
● No tool changes — switch profiles by selecting a program
● Tool-splitting technology — combine tools across all spindles
● Integrated software — handles the demanding component calculations
● Configurable — glass bead saw, hardware groove, slot cutters as needed.
● Vertongen sets up and pre-tools the machine — production-ready on install
Enquire about the Vertongen PenPro Control Window Line
