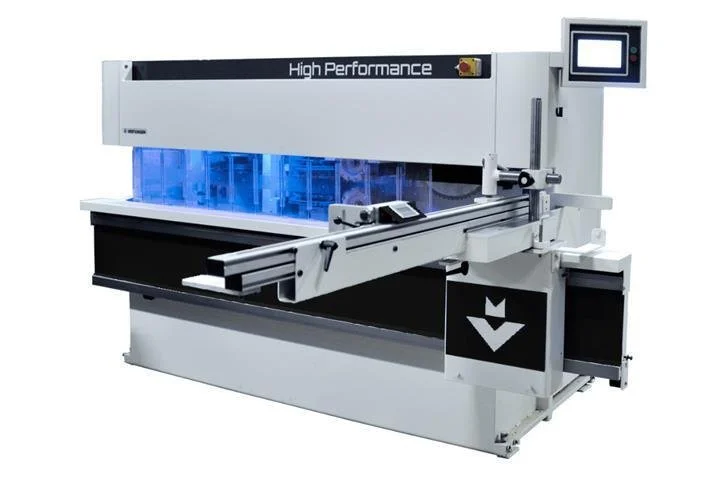

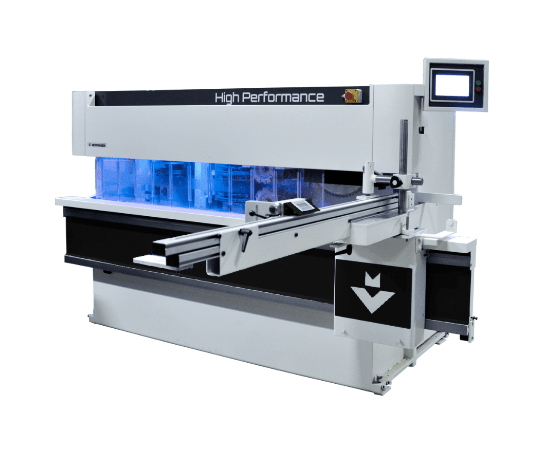

TenonerVertongenVertongen Pentho Compact 4 High-Performance Tenoner
Advanced CNC tenoner — two spindles for window production
The Vertongen Pentho Compact 4 is the advanced tenoner: two vertical spindles let you install frame and sash tooling at the same time, so you can make a complete window to size without tool changes. With the High-Performance pack it runs fully CNC — 9 individual positionings and profile changes in 15 seconds. The machine has a solid table on a stable vertical slide bar, 150mm depth capacity, and full CE guarding.
KEY SPECIFICATIONS
Vertical spindle
1 × 300 mm, Prolock
Spindle accuracy
0.1 mm
CNC positionings
7 individual
Profile changeover
15 seconds
Cut-off saw
Noise-reduced, Ø400 mm; cut-off capacity 150 mm
Tenon heads
Two
Table swivel
60° in two directions
Max tool Ø
350 mm (320 mm advised)
Length fence
Automatic CNC, up to 2.4 m (3.4 m option)
Clamps
Vertical pneumatic, pressure monitored
Dimensions (approx.)
3.1 × 1.7 × 1.7 m; ~1675 kg
Safety
Transparent dust screen moves with table; CE
Manufacturer
Vertongen (Belgium)
FEATURES
● Two spindles — frame and sash tooling loaded together; complete windows without tool
changes
● Fully CNC with HP pack — 9 positions, 15-second changeovers
● Purpose-built for window production — the step up from the Compact 3
● 150mm depth capacity on a solid, stable table
● Automatic length fence with digital readout — accurate sizing
● Full CE guarding with dust-rejecting safety screen
Enquire about the Vertongen Pentho Compact 4
RELATED MACHINES
Vertongen Pentho Compact 3

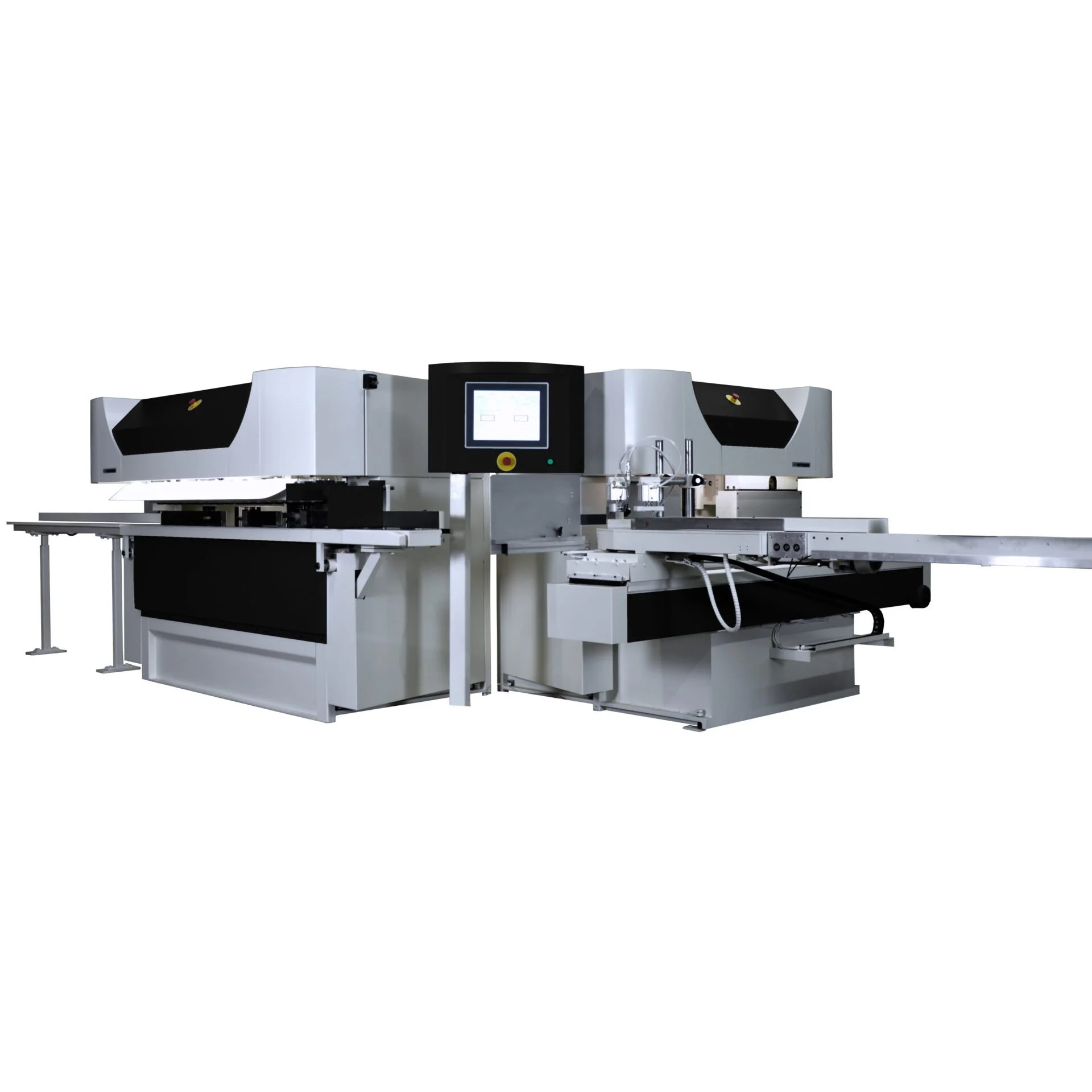

Vertongen PenPro Control Window LinE
