Sliding table sawOAVOAV A400M 3.2m Sliding Table Saw
Heavy-duty 3.2m sliding table saw with manual adjustment
The OAV A400M is a heavy-duty sliding table saw built for high-volume shops that need precision in a compact footprint. Cast iron main table, cast iron saw carriage and a precision sliding table deliver accurate, repeatable panel sizing all day long. Smooth handwheel adjustment of blade height and tilt with a digital readout on the tilt angle — ideal for kitchen cabinet shops, millwork companies and furniture makers.
KEY SPECIFICATIONS
Sliding table length
3200 mm
Sliding table dimension
Sliding table dimension 3200 × 378 mm
Max rip capacity
1300 mm
Main table
Cast iron
Saw carriage
Cast iron
Sliding table type
Double roller, precision
Blade height / tilt
Manual handwheel; digital readout on tilt
Round rail
50 mm
Duty rating
Heavy-Duty Series — 8–10 hours continuous
Applications
Kitchen cabinetry, furniture, millwork
FEATURES
● Cast iron construction — main table and saw carriage for accuracy that holds over time.

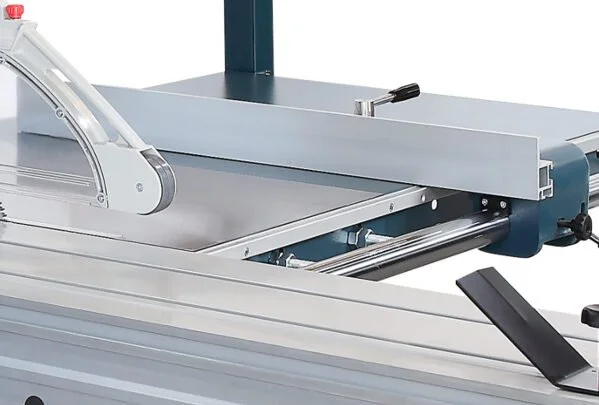

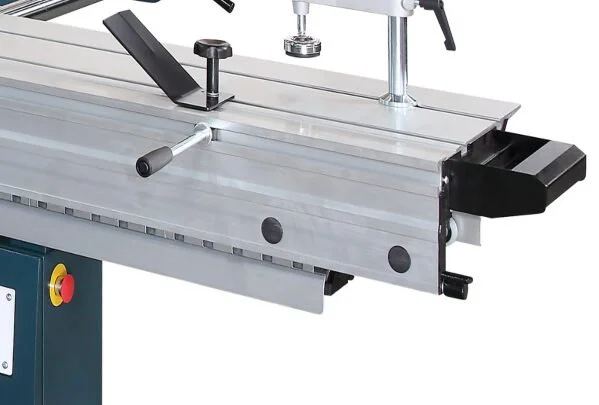

● Precision double-roller sliding table — smooth, effortless feed for repeatable cuts.

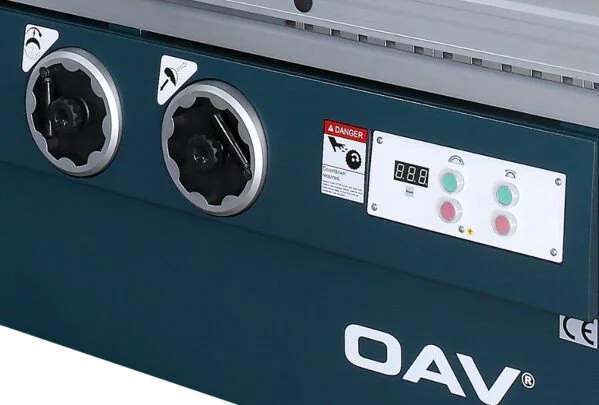

● Handwheel height & tilt with digital readout — simple, reliable, precise.
● 1300mm rip capacity — handles full sheet materials.
● Compact footprint — serious panel sizing where floor space is tight.

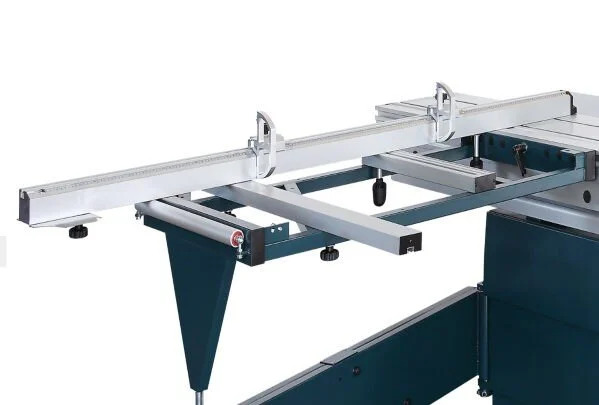

● Heavy-duty crosscut fence — mounts front or rear of the outrigger to suit the job.
