Panel sawOAVOAV A405E-NC 3.2m NC Panel Saw
3.2m NC sliding-table panel saw for continuous production

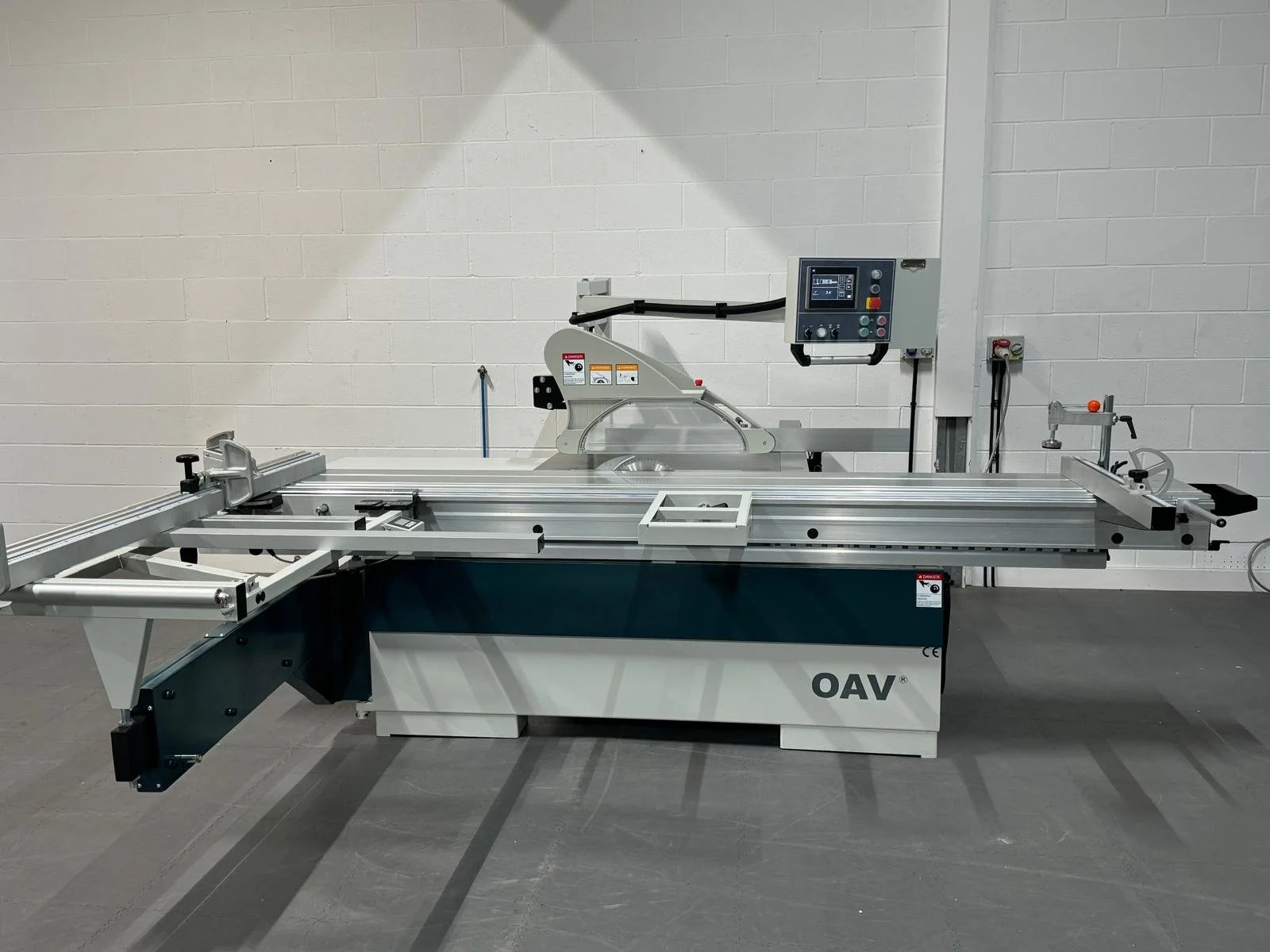

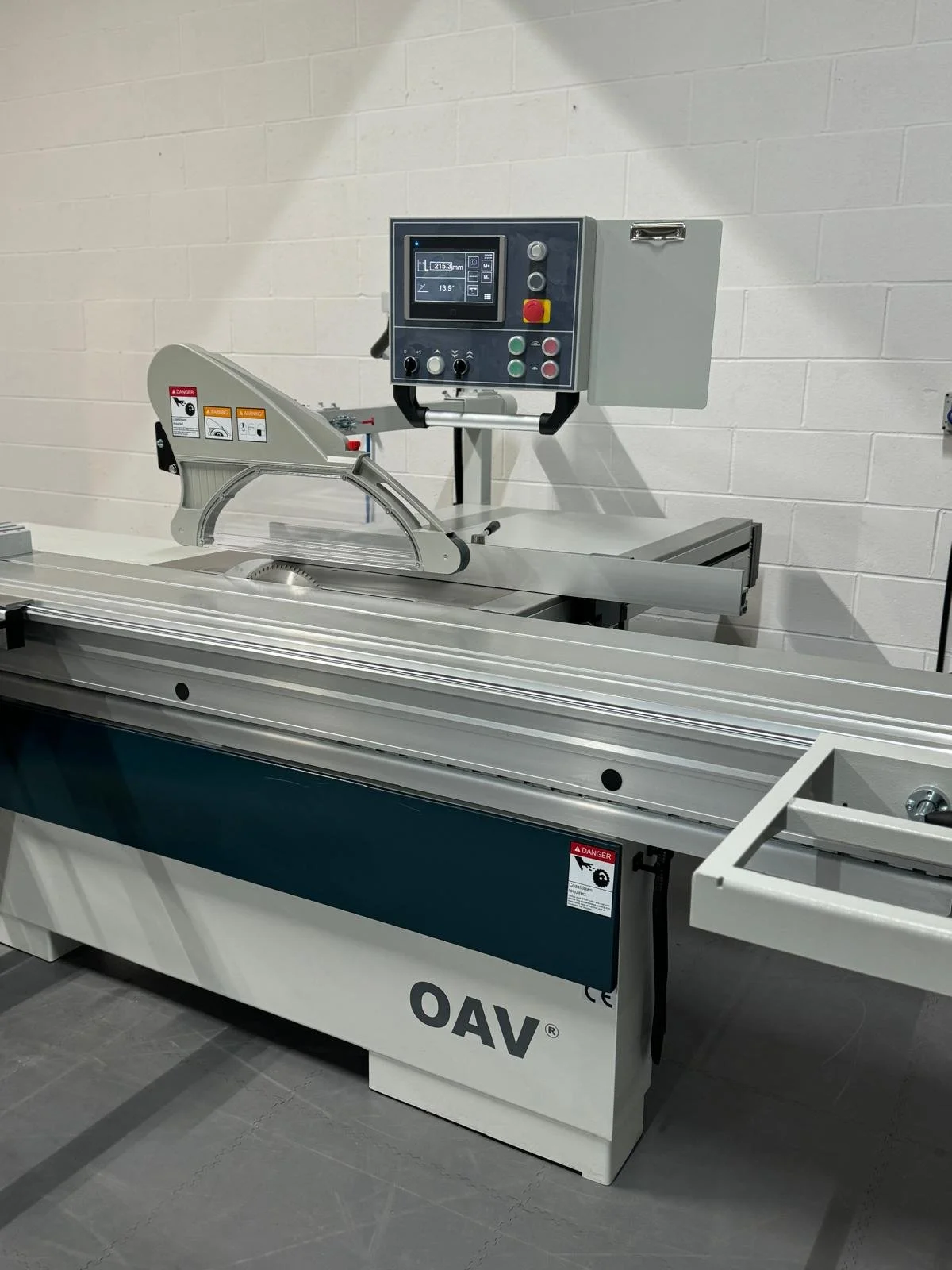

The OAV A405E-NC is an industrial sliding table saw built to run 8×4 and 10×5 panels shift after shift. Its NC rip fence sets the rip width automatically from an eye-level control — fast, accurate and repeatable, cut after cut. Designed for kitchen cabinetry, furniture and millwork shops that need to process large volumes of sheet material efficiently and safely.
KEY SPECIFICATIONS
Sliding table length
3200 mm (3800 mm option)
Max rip capacity
1300 mm
Sliding table
Precision aluminium extrusion on linear guide rails
Rip fence

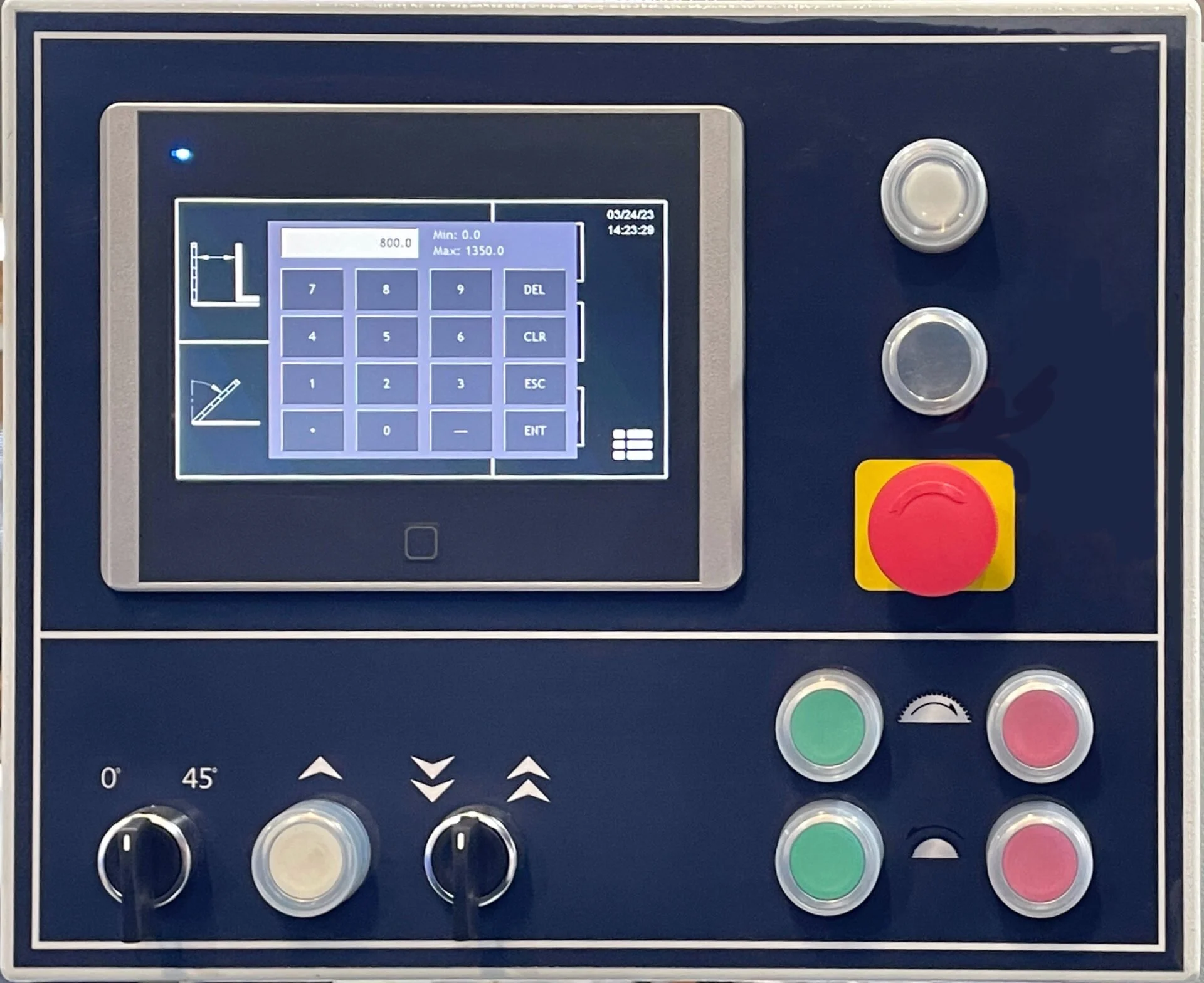

NC / electronically controlled, eye-level readout
Blade rise / fall / tilt
Motorised
Scoring blade
Yes
Duty rating
Continuous — 2–3 shifts / 24 hrs
Overhead guard
CE overarm blade guard, standard
Applications
Kitchen cabinetry, furniture, millwork
FEATURES

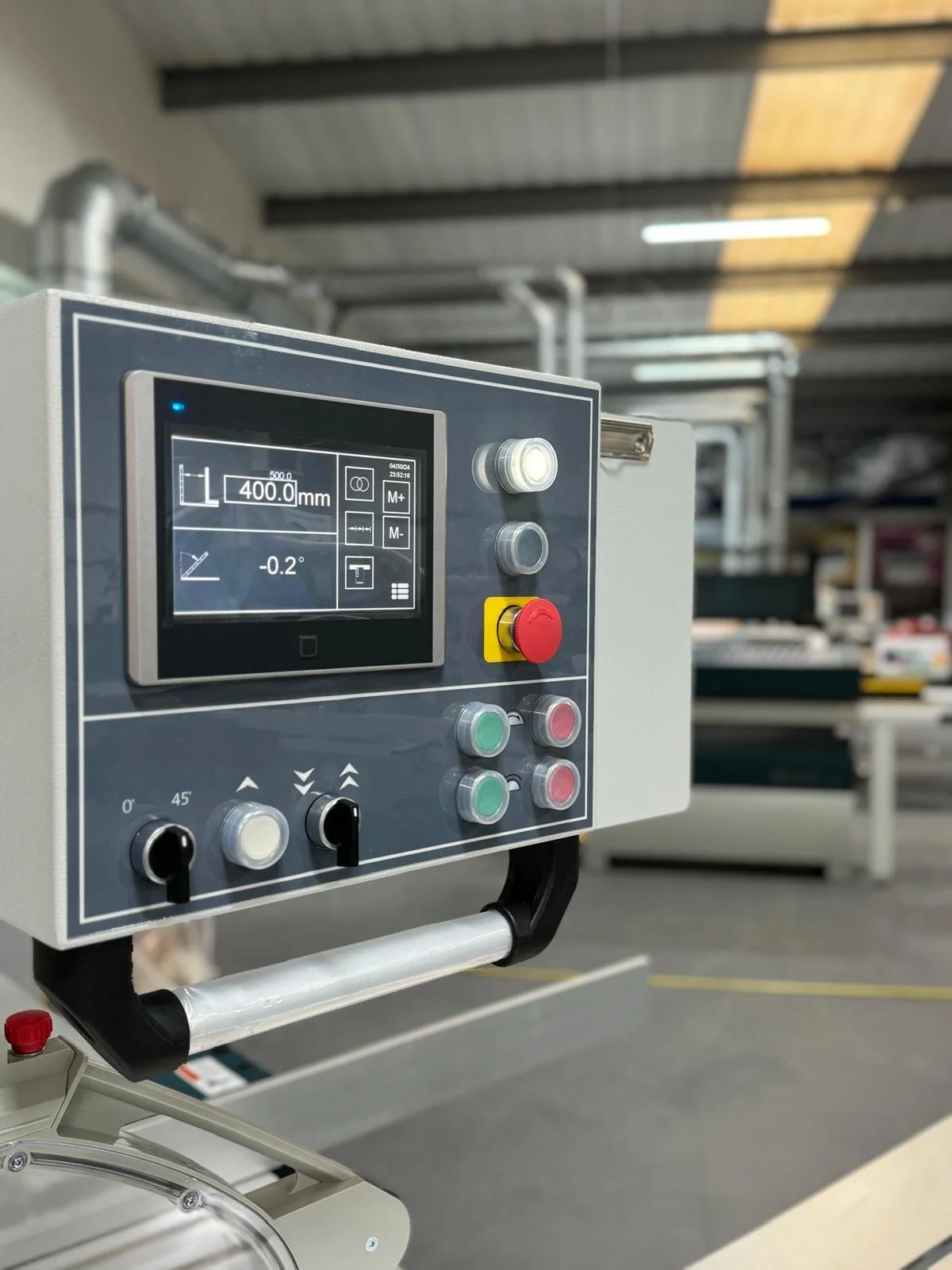

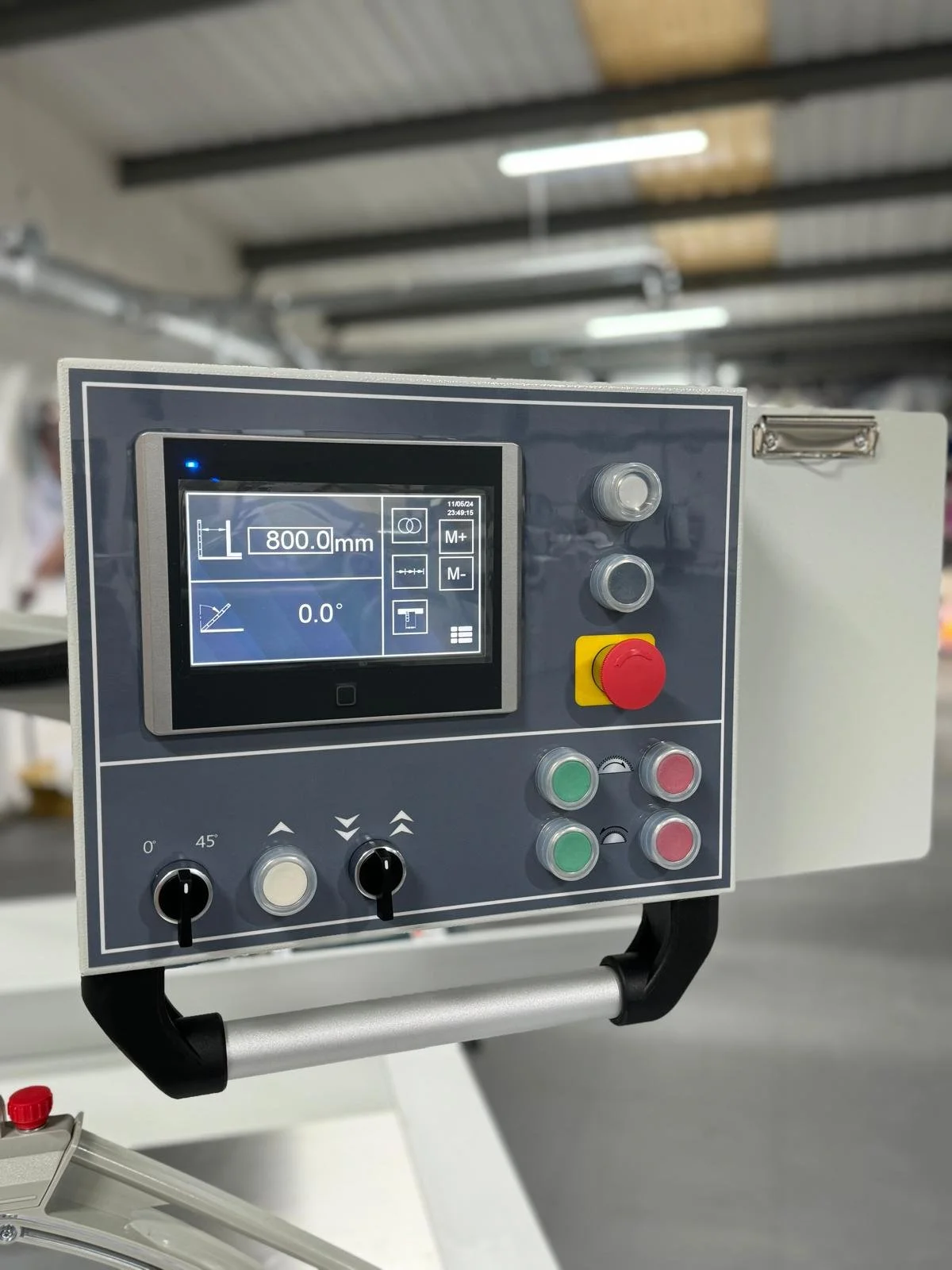

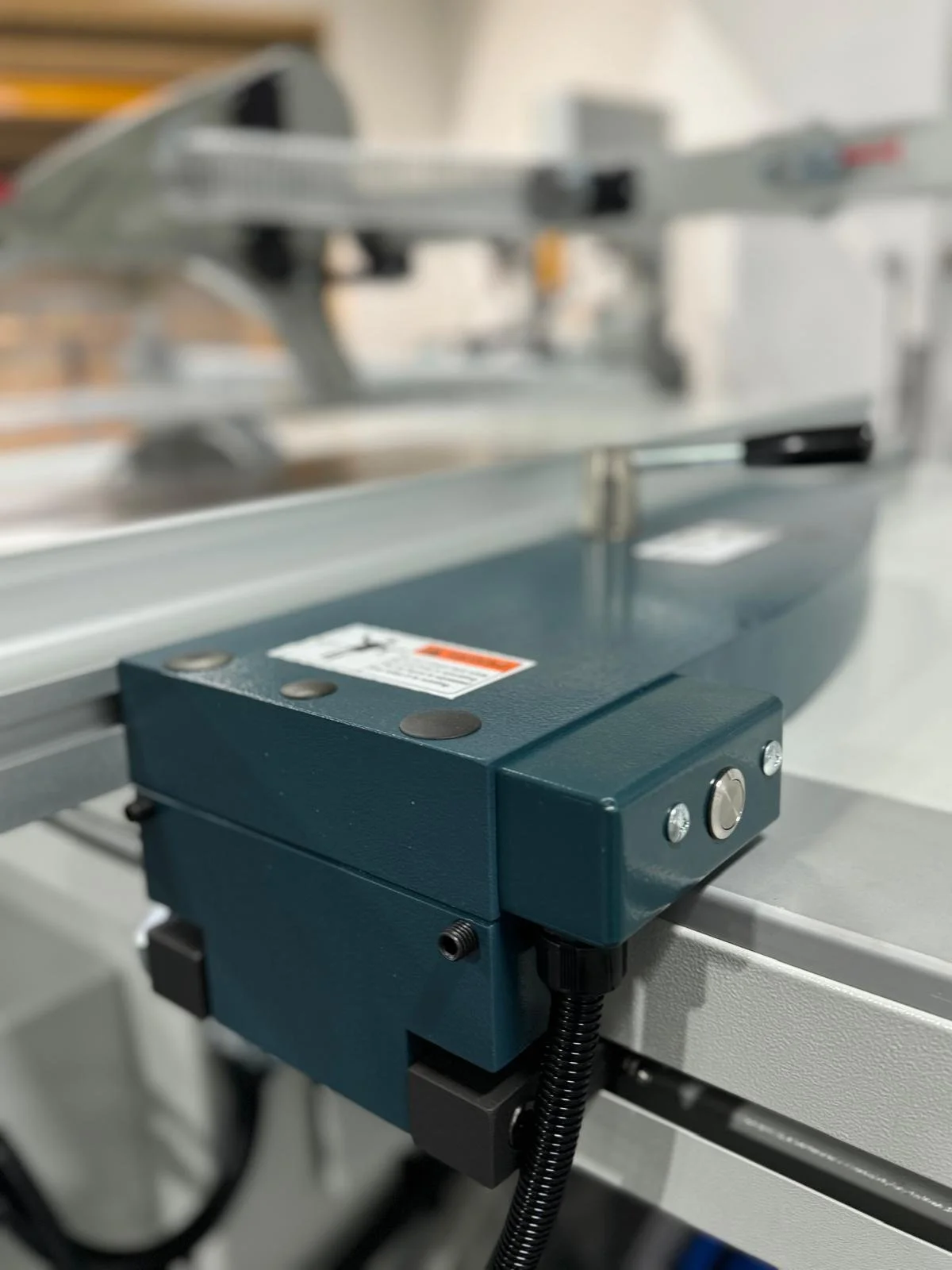

● NC rip fence — set rip width automatically at eye level; high repeatability, less measuring.
● Motorised rise, fall and tilt — quick, precise blade adjustment.

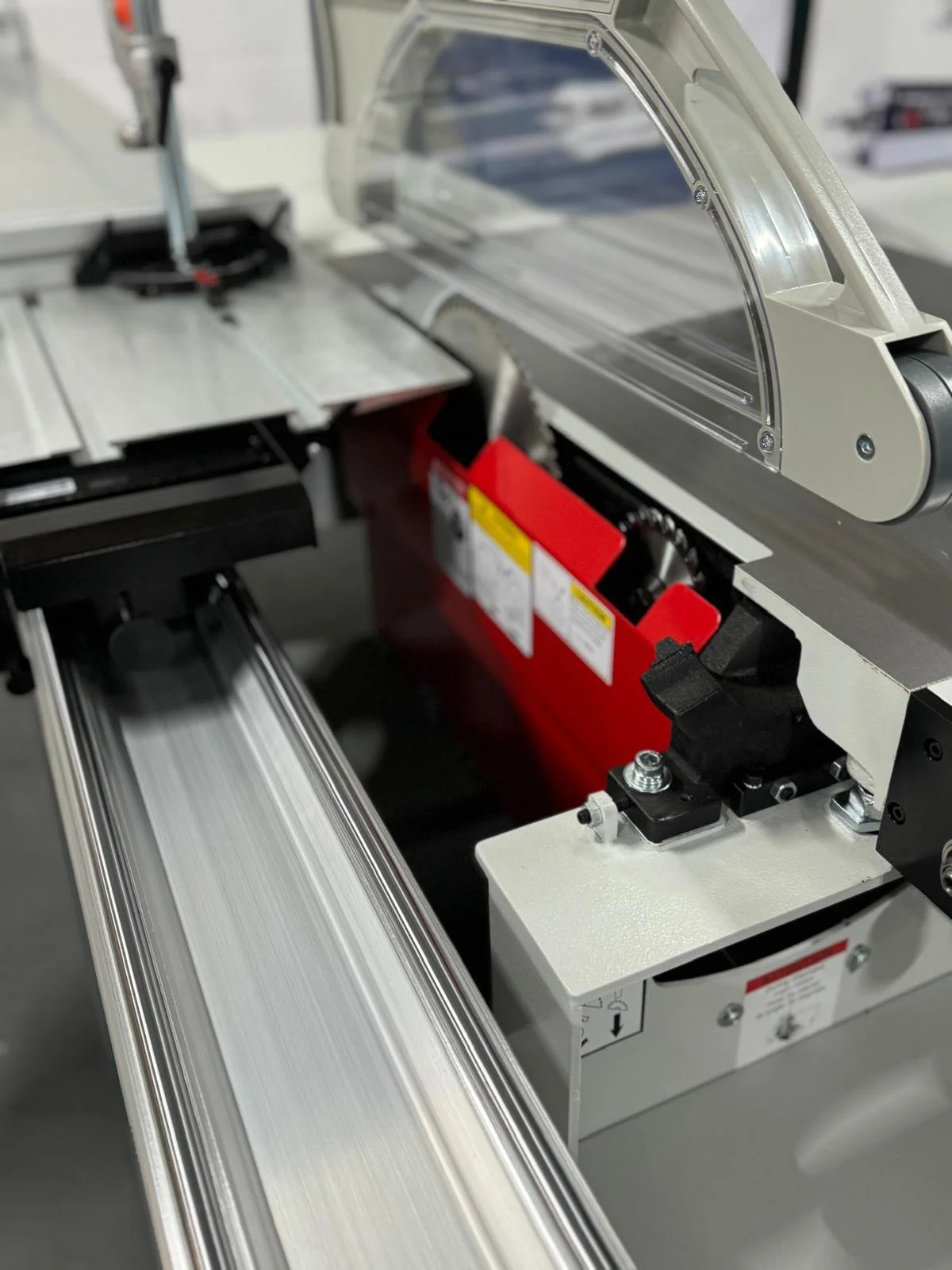

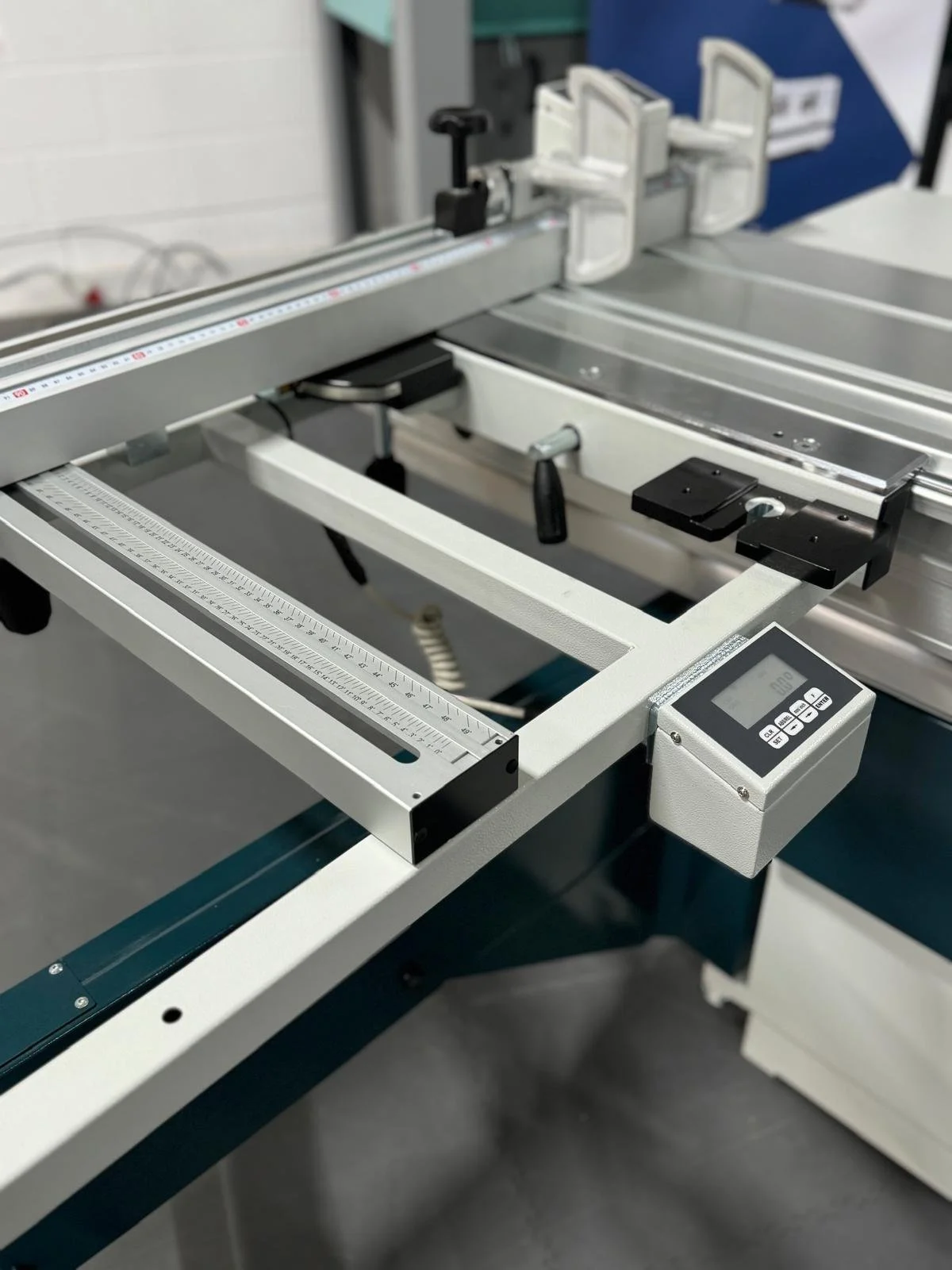

● 3200mm precision sliding table — aluminium extrusion on linear guide rails for smooth, accurate feed.
● Built for continuous duty — Industrial Series, designed for multi-shift production.
● Scoring unit — clean, chip-free cuts on melamine and laminated panels.
Enquire about the OAV A405E-NC
RELATED MACHINES

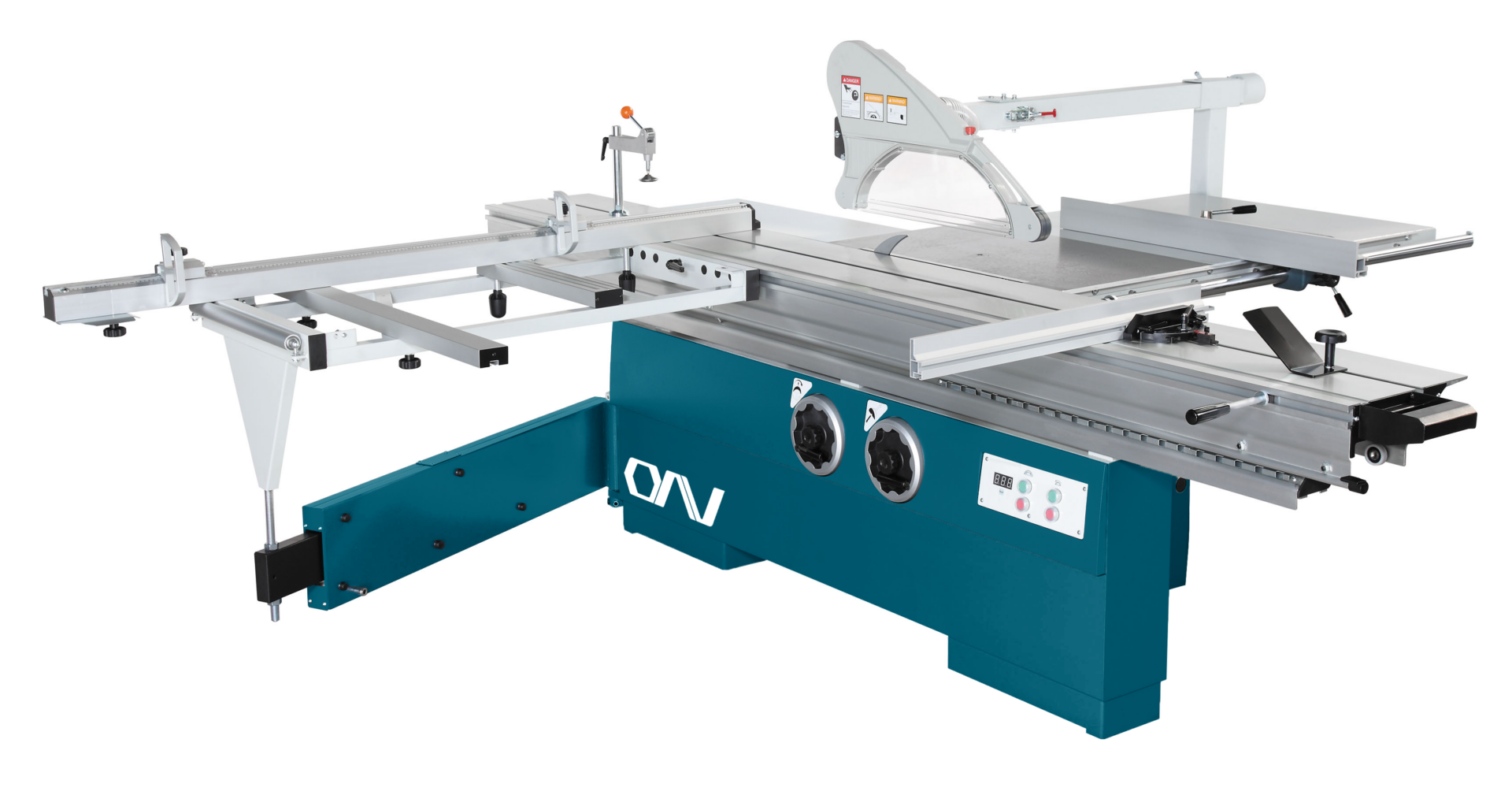

OAV A400M
